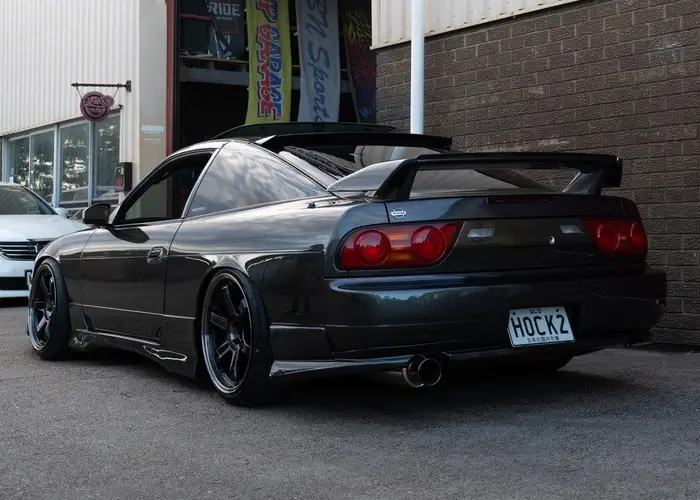

JZ Powered Nissan 180sx
1JZ VVTI TYPE X 180SX
POWER OUTPUT
739.7HP @ 30PSI - 10000+RPM
2.5L 1JZ VVTi Toyota cast block
- Oem Toyota crank with Ross Gold series Balancer
- SPOOL H-Beam rods
- CP CARILLO custom 11:1 pistons
- 1JZ VVTI head, mild bowl porting and clearancing for cams
- Kelford 229-D 272/278* 9.95mm Cams
- New springs and Titanium retainers with shimless buckets
- Toyota OEM head gasket
- AVIAID single stage wet sump external oil pump
- TOMEI sump baffle
- BRD fabricated intake manifold, bosch 89mm DBW
- BRD fuel rail and bosch 1650cc injectors E85/98 Flex fuel
- TURBOSMART FPR8
- TAARKS VR38 coil kit
- CHASEBAYS thermostatic oil plate, with PWR oil cooler
- CHASEBAYS under rad support radiator, twin 1700cfm fans
- Radium triple in tank hanger with 2x Walboro 460lph and 1/2" feed and return fuel lines
- Garrett G35-900 1.01 turbocharger with Turbosmart 45mm ProGate
- Tonnka high mounted exhaust manifold
- 3.5” custom fabricated dump and exhaust, Kakimoto GT1.0Z cannon
- TRUST/GREDDY intercooler and custom fabricated piping
- Mazworx JZVQ bell housing mated to 370Z CD009, with S1 Sequential shifter
- Direct Clutch Services billet 9” twin plate clutch
- NISMO 1.5way differential 4:3 ratio
- Haltech NEXUS R3
- Haltech 4x2 keypad
- Haltech flex fuel
- Haltech IC7 dash
- Enabled and functioning traction control, cruise control, anti-lag rolling/static and flat shift, a/c, map/boost selection
Mazda 46G Grey
- OEM Type X aero mixed with Hotroad skirts and rear valance
- JetSpeed vented bonnet - VOLK RACING TE37SL Double pressed Black 18x9.5+12
- Tein SuperDrift coilover
- Gktech castor arms, camber arms, toe arms
- F80 M3 385mm front rotors with Mustang GT brake calipers
- Bride Zeig3 red fixed back
- Bride Brix1.5 red recliner
- Momo Monte Carlo 330mm steering wheel, electric assist steering column
- S1 Sequential Shifter
- Retrimmed interior lining and panels
- Haltech IC7 dash with Mako Motorsport surround
- JVC Single din
- Rockford Fosgate 6” splits
- Rockford Fosgate 4” components
HIGH PERFORMANCE
Breaking records with innovative design & manufacturing to deliver the high performance aftermarket camshafts and valve train components.
KELFORD CAMS
KCGJZ SINGLE | 1JZ / 2JZ Single Cam Gear
Precise degree markings are then laser etched onto the cam gear to assist in the tuning of engines. Increase belt life and longevity.
VG202-EX-12 | 1JZ / 2JZ Exhaust Valve Guides
Exhaust valve guide for Toyota 1JZ-GTE and 2JZ-GTE. OD: 11.05mm. ID: 5.97mm. Set of 12. High quality precision machined.
248/248 | 1JZ-GTE VVTi
Great for street cars. Ultimate throttle response with VVT-i. Improved low to mid-range power and fast spool. Suits stock turbo or 54mm-58mm turbo upgrade
KVS229-BT-X | 1JZ Extreme Springs
Designed for extreme boost and high RPM racing engines. High frequency spring design to reduce spring surge at high operating RPM.
KVS109-1JZ-T | 1JZ Valve Springs
High performance PACALOY™ valve spring and titanium retainer kit. 100lb seat pressure at 33.75mm installed height. 185lbs at 11.0mm valve lift. Coil bind at 22.0mm.
VS-TS6I-12 | 1JZ | 2JZ – Intake Stem Seal
Intake Valve Stem Seal Set 6mm. Guide OD 11mm. Seal OD 13.2mm. Polyacrylic.
264/272 | 1JZ-GTE VVTi
Street/strip or track day performance cams. Ultimate throttle response with VVTi. Good increase in mid-range power. Suits single 60mm-70mm turbo.
282/286 | 1JZ-GTE VVTi
High lift racing cams for engines running alcohol based fuels and 72mm+ turbo. Improved throttle response when using VVTi. High velocity cams
KVS109-1JZ | 1JZ-GTE Valve Springs
PACALOY™ valve spring set. 'Drop-in' using the OEM retainer. 95lb seat pressure at 34.0mm installed height. 185lbs open load at 11.0mm valve lift. Coil bind at 22.0mm.
24 x 1JZ DLC Coated Followers
Toyota 1JZ-GTE DLC Coated Cam Follower. Feature: larger internal fillet and reinforced skirt. Increased rigidity increases both camshaft and bucket longevity.
272/278 | 1JZ-GTE VVTi
Motorsport applications. Ultimate throttle response with VVT-i. More top end and maximum power than V229-C. Suits single 64mm-76mm turbo. Great with E85.
1 x 1JZ / 2JZ DLC Cam Follower
Choose Kelford Cams DLC Coated Cam Buckets for the Toyota 1JZ-GTE and 2JZ-GTE engine for improved performance and longevity.
VG202-IN-12 | 1JZ / 2JZ Intake Valve Guides
Intake valve guide for Toyota 1JZ-GTE and 2JZ-GTE. OD: 11.05mm. ID: 5.97mm. Set of 12. High quality precision machined
260/260 | 1JZ-GTE VVTi
Improved low to mid-range power and fast spool. Ultimate throttle response with VVT-i. Suits upgraded turbo 54-64mm. Can use OEM valve springs
