248/248 | 1JZ-GTE Camshafts

SKU : 229-A
CAMSHAFT PROFILE:

248°/248° | 8.70mm/8.70mm

248°/248° Camshaft for a near stock 1JZ-GTE Non VVTi engine. Great for street cars. Good throttle response. Improved low to mid-range power and fast spool. Suits stock twin turbo or single 54mm-58mm turbo upgrade. Can use OEM valve spring up to stock boost and rpm limit.

  • For up to 7500rpm and 30psi boost Kelford Cams recommend valve spring KVS109-1JZ.

KELFORD CAMS CATALOGUE

1JZ-vvti-Camshafts-V229View Specs
SKU V229

5 Camshaft Profiles

Toyota-1JZ-GTE-CamshaftsView Specs
SKU 229-B

Street performance cams. Improved low to mid-range power and fast spool. Good throttle response. Suits upgraded twin turbo or single turbo 54-64mm. Can use OEM valve springs up to

NZD $1,185.00
Toyota-1JZ-GTE-CamshaftsView Specs
SKU 229-C

Street/strip or track day performance 1JZ engine cams. Good throttle response and mid-range power. Suits single 60mm-70mm turbo.

NZD $1,185.00
Toyota-1JZ-GTE-CamshaftsView Specs
SKU 229-D

For a vast range of motorsport applications. More top end and maximum power than 229-C. Suits single 64mm-76mm turbo. Great with E85 fuel.

NZD $1,185.00
Toyota-1JZ-GTE-CamshaftsView Specs
SKU 229-F

To suit engine running alcohol based fuels and 72mm+ turbo. High velocity cams require a shimless bucket or shim-under bucket conversion.

NZD $1,185.00
Toyota-1JZ-GTE-CamshaftsView Specs
SKU 229-E

Drag Racing Cams for wide open throttle and high rpm power. Engine running 72mm+ turbocharger. Ideal for alcohol based fuels.

NZD $1,185.00
Toyota-1JZ-GTE-CamshaftsView Specs
SKU 229-G

292°/302° pro-import drag racing cams to suit extreme boost, high rpm 1JZ-GTE non vvti engine running alcohol fuel. 80mm+ turbocharger.

NZD $1,185.00
Toyota-1JZ-GTE-Camshafts
SKU: 229-A
NZD $1,185.00
View Specs
SKU: KVS109-1JZ

PACALOY™ valve spring set. 'Drop-in' using the OEM retainer. 95lb seat pressure at 34.0mm installed height. 185lbs open load at 11.0mm valve lift. Coil bind at 22.0mm.

NZD $594.00
View Specs
SKU: KVS109-1JZ-T

High performance PACALOY™ valve spring and titanium retainer kit. 100lb seat pressure at 33.75mm installed height. 185lbs at 11.0mm valve lift. Coil bind at 22.0mm.

NZD $783.00
Toyota 1JZ Valve SpringsView Specs
SKU: KVS229-BT-X

Designed for extreme boost and high RPM racing engines. High frequency spring design to reduce spring surge at high operating RPM.

NZD $1,295.00

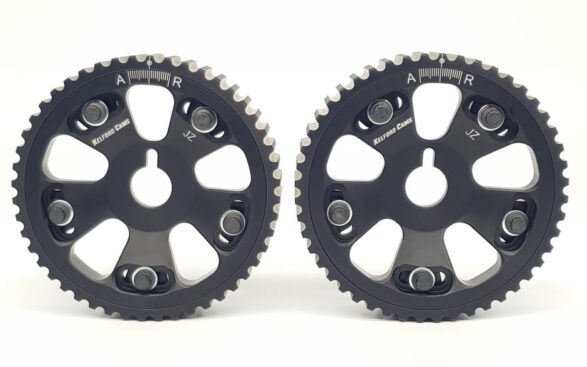

Engine 1JZ Timing GearsView Specs
SKU: KCGJZ

The gears have been CNC machined from highest quality 6061 T6 aluminium to more precise tolerances than original OEM gears.

NZD $529.00
DLC CoatedView Specs
SKU: KCF-229

Toyota 1JZ-GTE DLC Coated Cam Follower. Feature: larger internal fillet and reinforced skirt. Increased rigidity increases both camshaft and bucket longevity.

NZD $949.00
Valve SealView Specs
SKU: VS-TS6I-12

Intake Valve Stem Seal Set 6mm. Guide OD 11mm. Seal OD 13.2mm. Polyacrylic.

NZD $31.68
Valve SealView Specs
SKU: VS-TS6E-12

Exhaust Valve Stem Seal Stem 6mm. Guide OD 11mm. Seal OD 13.2mm. Viton

NZD $42.48
Kelford-Cams-VALVE-GUIDEView Specs
SKU: VG202-IN-12

Intake valve guide for Toyota 1JZ-GTE and 2JZ-GTE. OD: 11.05mm. ID: 5.97mm. Set of 12. High quality precision machined

NZD $167.40
Kelford-Cams-VALVE-GUIDEView Specs
SKU: VG202-EX-12

Exhaust valve guide for Toyota 1JZ-GTE and 2JZ-GTE. OD: 11.05mm. ID: 5.97mm. Set of 12. High quality precision machined.

NZD $167.40
SALES TEAM Kelford Cams
Need a B2B Account? Send email
ASK A QUICK QUESTION


CAMSHAFT SELECTION FORM



Engine Make:
TOYOTA
Engine Model:
1JZ TURBO
Part Number:
229-A Camshaft
Valve clearance
Intake:
0.25mm Set: cold at the cam
Exhaust:
0.25mm Set: cold at the cam

Cam Lift:
Intake:
8.95mm
Exhaust:
8.95mm
Rocker Ratio:
Intake:
1
Exhaust:
1
Nett Valve Lift:
Intake:
8.70mm
Exhaust:
8.70mm
Advertised Duration @ 0.10mm
Intake:
248
Exhaust:
248
Duration @1mm VALVE LIFT
Intake:
210
Exhaust:
210
Timing @1mm VALVE LIFT
IVO:
4 ATDC
EVO:
41 BBDC
IVC:
34 ABDC
EVC:
11 BTDC
Suggested Centre Lines:
Intake:
109
Exhaust:
116
VALVE Lift @ TDC
Intake:
0.68mm
Exhaust:
0.06mm
P65-warning
CAMSHAFT SPEC CARD CAMSHAFT SPEC CARD

Engine Make:
TOYOTA
Engine Model:
1JZ TURBO
Part Number:
229-A Camshaft
Valve clearance
Intake:
0.25mm Set: cold at the cam
Exhaust:
0.25mm Set: cold at the cam

Cam Lift:
Intake:
8.95mm
Exhaust:
8.95mm
Rocker Ratio:
Intake:
1
Exhaust:
1
Nett Valve Lift:
Intake:
8.70mm
Exhaust:
8.70mm
Advertised Duration @ 0.10mm
Intake:
248
Exhaust:
248
Duration @1mm VALVE LIFT
Intake:
210
Exhaust:
210
Timing @1mm VALVE LIFT
IVO:
4 ATDC
EVO:
41 BBDC
IVC:
34 ABDC
EVC:
11 BTDC
Suggested Centre Lines:
Intake:
109
Exhaust:
116
VALVE Lift @ TDC
Intake:
0.68mm
Exhaust:
0.06mm
